CY – 300/500V

GENERAL SCOPE

• Screened control cables, copper conductor, PVC insulated, oil resistant PVC sheathed.
• Used for control circuits 50Hz, fixed wiring.

STANDARD

•  TCVN 6610 – 7 (6610 TCVN 74); TCVN 6612
• IEC 60227 – 7 (60227 IEC 74); IEC 60228

IDENTIFICATION

• 2 cores: identified by numbers (01, 02), white numbers shall be printed on surface of black insulation of core.
• 3 cores or more: identified by numbers (01, 02,…), white numbers shall be printed on surface of black insulation of core combine with a core in yellow-green color.
• Sheath: Black color or customer requirements.

CONSTRUCTION

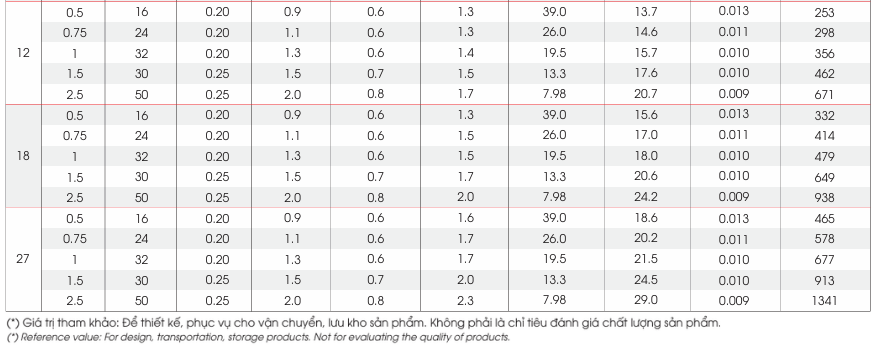

TECHNICAL CHARACTERISTICS

• Rated voltage Uo/U: 300/500V
• Maximum conductor temperature in normal operation 70°C
• Min. bend radius: 8xD (D: Overall diameter of cable)

APPLICATION

• The interconnection of parts of machines used for manufacturing purposes including machine tools where some degree of protection against electromagnetic interference is required.
