CXH/DATA/FR – 0.6/1kV

PRODUCT OVERVIEW

• Fire resistant cable, copper conductor (Class 2), mica tape, XLPE insulation, metallic armouring, LSZH sheath.
• Fire resistant cables are used for fixed installation in public facilities, backup power systems, emergency systems, fire alarm systems, sprinklers, smoke detection and extraction equipment, emergency lighting and evacuation systems…

STANDARD

• TCVN 5935-1 (IEC 60502-1) ; TCVN 6612 (IEC 60228)
• IEC 60331-21 ; IEC 60332-1,3 ; BS 6387
• IEC 60754-1,2 ; IEC 61034-2

IDENTIFICATION

• Insulation color: Natural color
• Sheath color: Orange or customer’s request

CONSTRUCTION

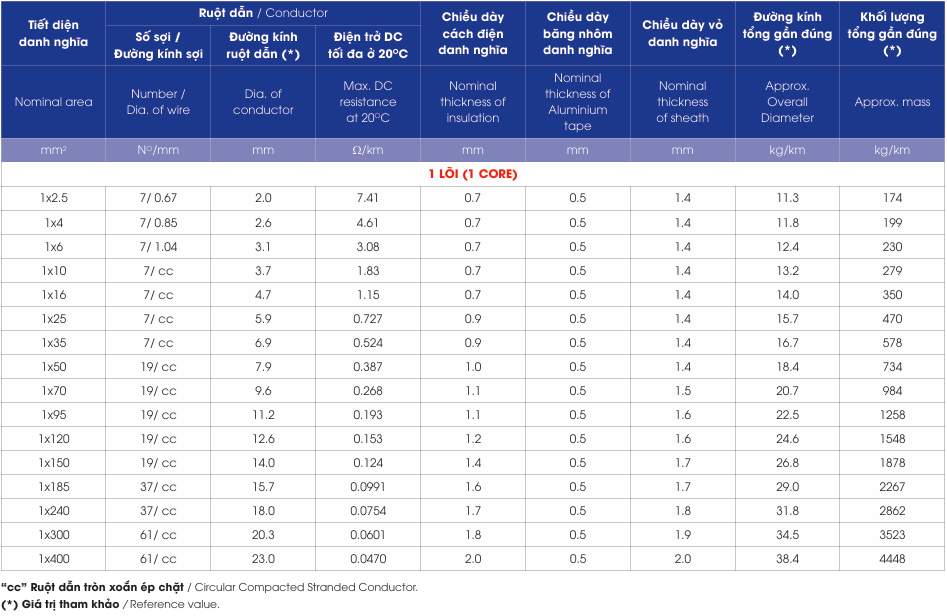

TECHNICAL CHARACTERISTICS

• Rated voltage Uo/U: 0.6/1 kV
• Maximum conductor temperature for normal operation is 90°C
• Maximum conductor temperature when short-circuiting (maximum duration of 5s) is 250°C
• Cables can withstand fire at 950°C for 3 hours; meeting the BS 6387 Cat. C, W, Z standard
• The fire resistant cables have a significantly reduced tendency to propagate fire
• The cables have a low emission of smoke and does not produce toxic gas when affected by fire
• The cables have the ability to self-extinguish after removing the fire source
• Min. bend radius: 12xD (D: Overall diameter of cable)
