FLAME RETARDANT CABLES COPPER CONDUCTOR, FR - PVC INSULATED (CV/FRt)
PRODUCT OVERVIEW
- Fire retardant cable, copper gut (Level 2), FR-PVC insulation.
- CV / FRt fire retardant cable is designed to limit the spread of flame when affected by fire, suitable for use in various types of buildings …, installed in fixed systems.
STANDARD
- AS/NZS 5000.1
- AS/NZS 1125; IEC 60331 – 21
- BS 4066 – 1, 3; BS 6
IDENTIFICATION
- CV/FR – Cu/Mica/FR – PVC
- Orange or other colour as order

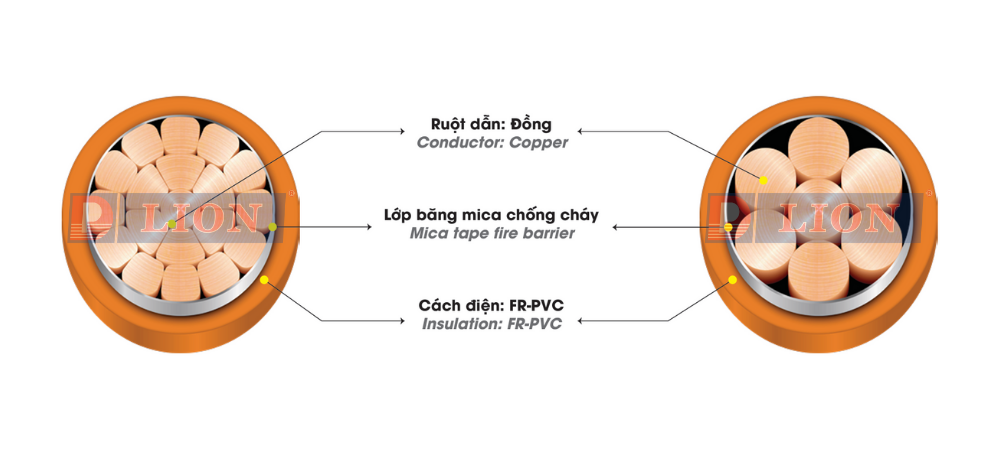

CONSTRUCTION
TECHNICAL CHARACTERISTICS
- Rated voltage Uo/U: 0.6/1kV
- Maximum conductor temperature in normal operation 75°C
- Max. conductor temperature in short-circuit for 5s max duration:
Conductor cross-section > 300 mm²: 140°C
Conductor cross-section ≤ 300 mm²: 160°C - Cable are subjected to fire at 950oC for 3 hours
- The flame retardant cables have a significant reduced tendency to propagate fire
- Min. bend radius: 8xD (D: Overall diameter of cable)

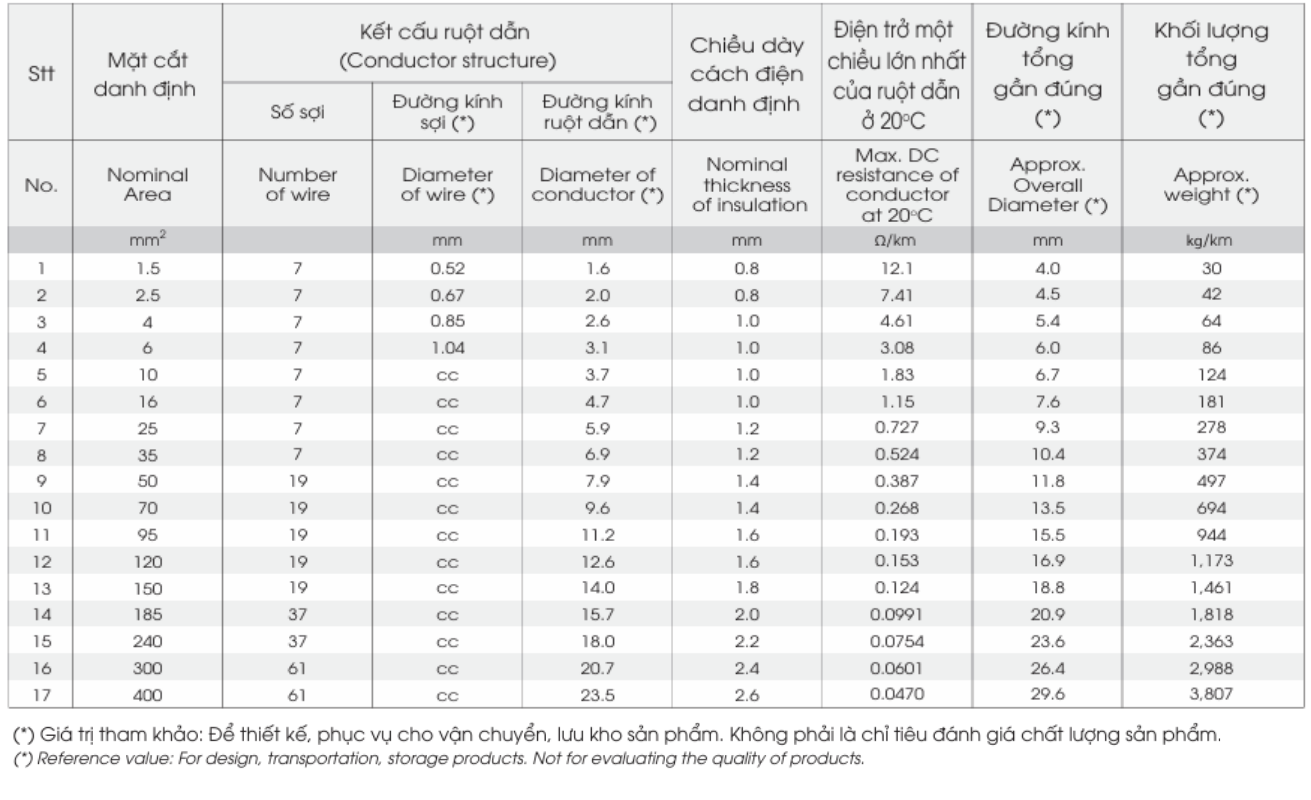

THÔNG SỐ KỸ THUẬT
