ZCm/FRT (110)

SINGLE FLEXIBLE WIRE, COPPER
CONDUCTOR, LSZH INSULATOR
Video

SINGLE FLEXIBLE WIRE, COPPER
CONDUCTOR, LSZH INSULATOR

alt

PRODUCT OVERVIEW

  • Single flexible wire, copper conductor (Class 5), LSZH (X-HF-110) insulation, used in residential electrical appliances.
  • Installed in weather protective environment as power distribution cable.
alt

STANDARD

  • AS/NZS 5000.1; AS/NZS 1125; IEC 60332-1
  • IEC 60754-1,2; IEC 61034-2
alt

IDENTIFICATION

  • Insulation color: Red, black, white, blue and green – yellow
alt

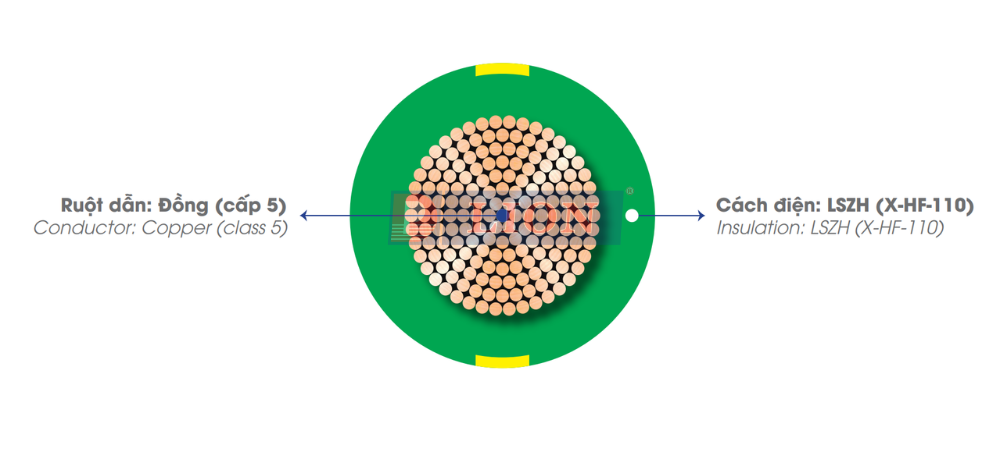

CONSTRUCTION

alt

TECHNICAL CHARACTERISTICS

  • Rated voltage Uo/U: 0.6/1kV
  • Maximum conductor temperature in normal operation 110OC
  • The flame retardant cables have a significantly reduced tendency to propagate fire
  • The cables have a low emission of smoke and does not produce toxic gas when affected by fire

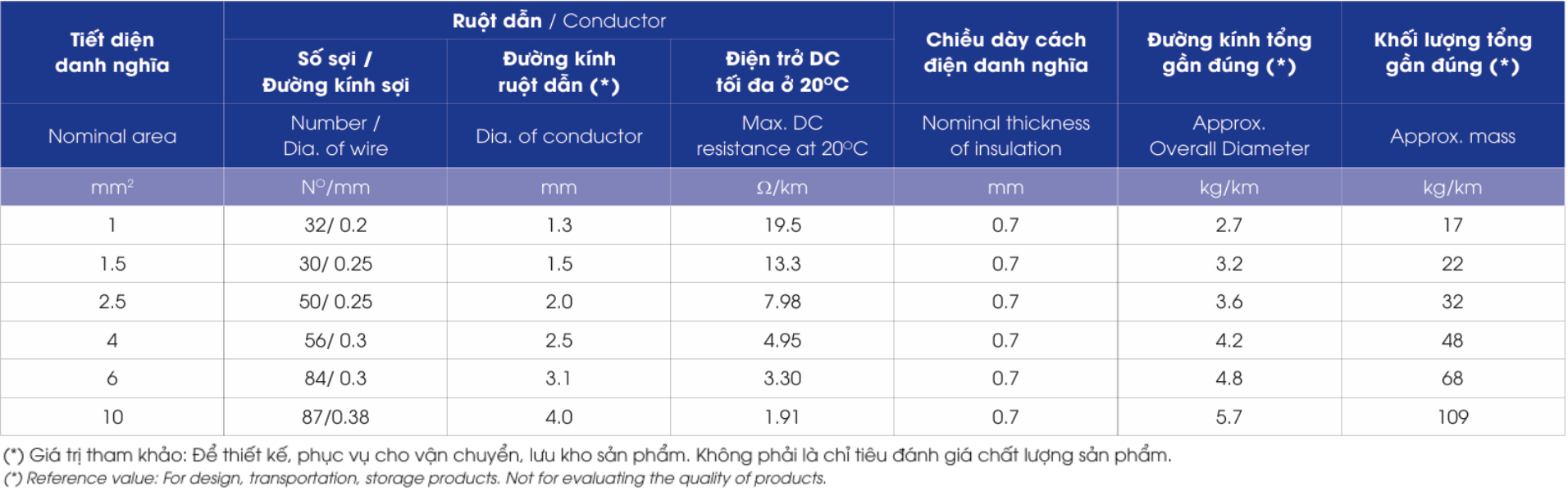

SPECIFICATIONS
