HCmo/FRT

PRODUCT OVERVIEW

• Oval flat flexible wire, copper conductor (Class 5), LSZH (HFI-90-TP) insulation, LSZH (HFS-90-TP) sheath, used in residential electrical appliances.
• Use flexibly in residential wiring and to connect small electrical appliances with limited load.

STANDARD

• AS/NZS 5000.2; AS/NZS 1125; IEC 60332-1
• IEC 60754-1,2; IEC 61034-2

IDENTIFICATION

• Insulation color : Blue, brown
• Sheath color: Yellow, blue, red, white

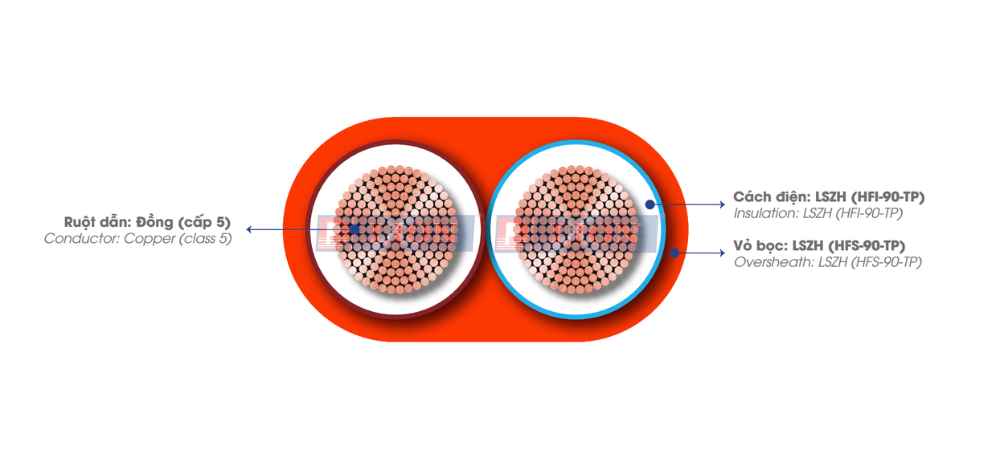

CONSTRUCTION

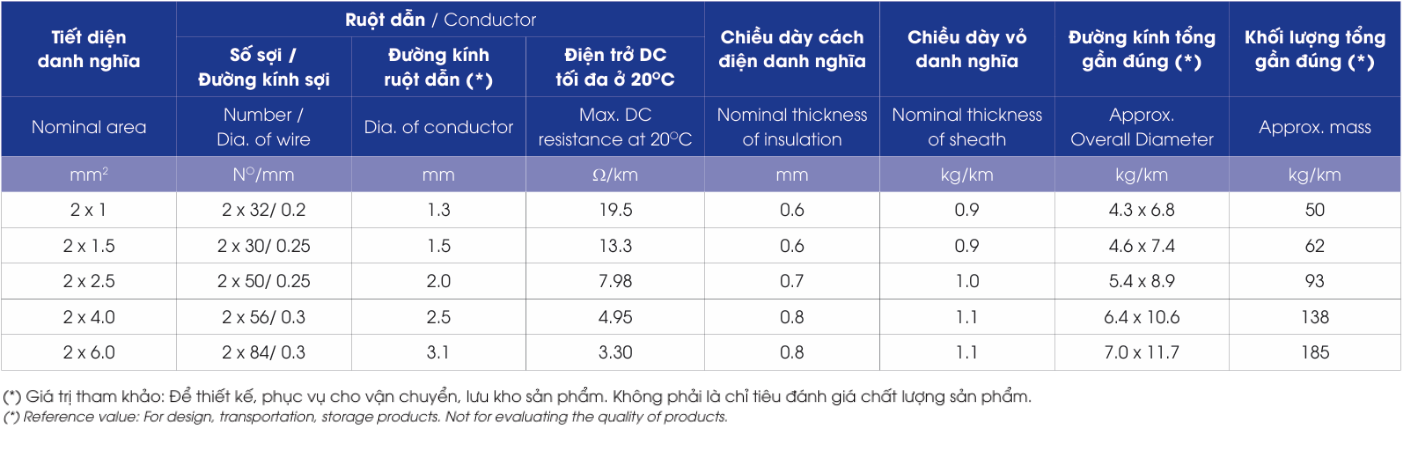

TECHNICAL CHARACTERISTICS

• Rated voltage Uo/U: 450/750V
• Maximum conductor temperature in normal operation 90ºC
• The flame retardant cables have a significantly reduced tendency to propagate fire
• The cables have a low emission of smoke and does not produce toxic gas when affected by fire
