HC/FRT

PRODUCT OVERVIEW

• Solid single wire, copper conductor (Class 1), LSZH (HFI-90-TP) insulation, used in residential electrical appliances.
• Use in weather protective environment as power distribution cable.

STANDARD

• AS/NZS 5000.1; AS/NZS 1125; IEC 60332-1
• IEC 60754-1,2; IEC 61034-2

IDENTIFICATION

• Insulation color: Red, yellow, black, white, brown, blue and green – yellow

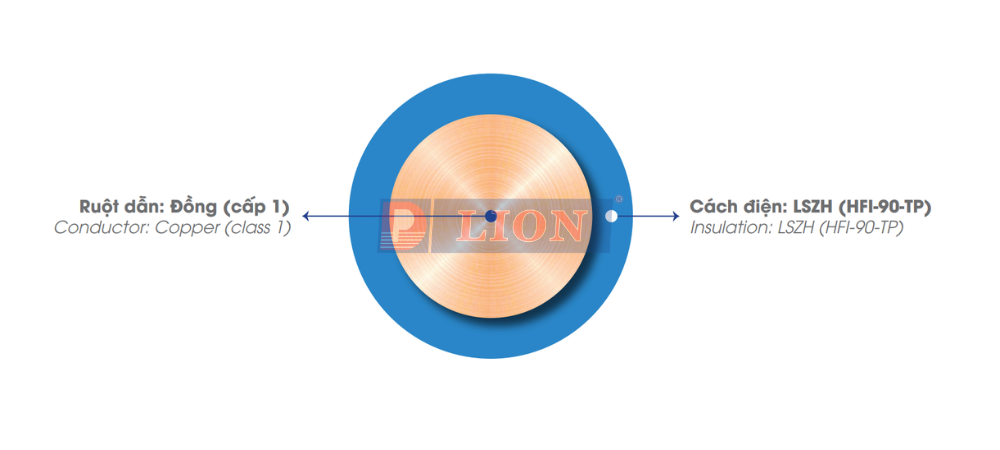

CONSTRUCTION

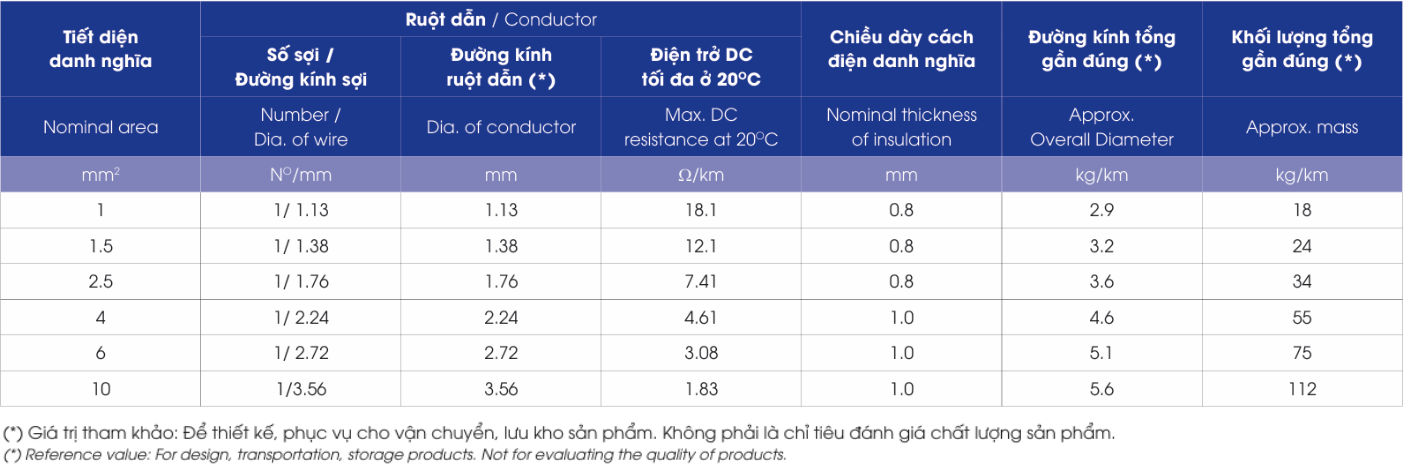

TECHNICAL CHARACTERISTICS

• Rated voltage Uo/U: 0.6/1kV
• Maximum conductor temperature in normal operation 90ºC
• The flame retardant cables have a significantly reduced tendency to propagate fire
• The cables have a low emission of smoke and does not produce toxic gas when affected by fire
